Products > Switch > TACTILE SWICH > 6×6 SMD/DIP(TS0648)

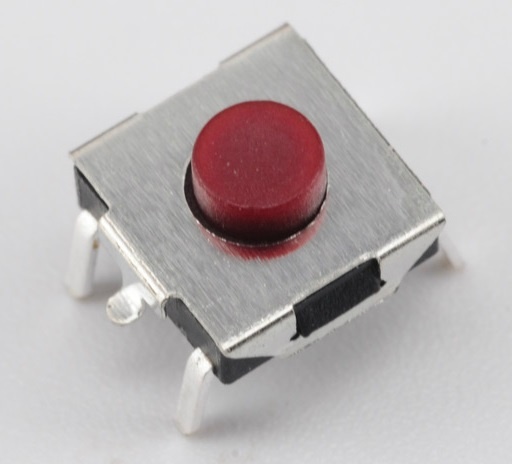

6×6 SMD/DIP(TS0648)
6×6 SMD/DIP(TS0648) 6×6 SMD/DIP(TS0648) 6×6 SMD/DIP(TS0648) 6×6 SMD/DIP(TS0648)
Product name : 6×6 SMD/DIP(TS0648)
Product No. : 201927173244
             [Next Product]→
Online Inquiry         Email Us

  Details:

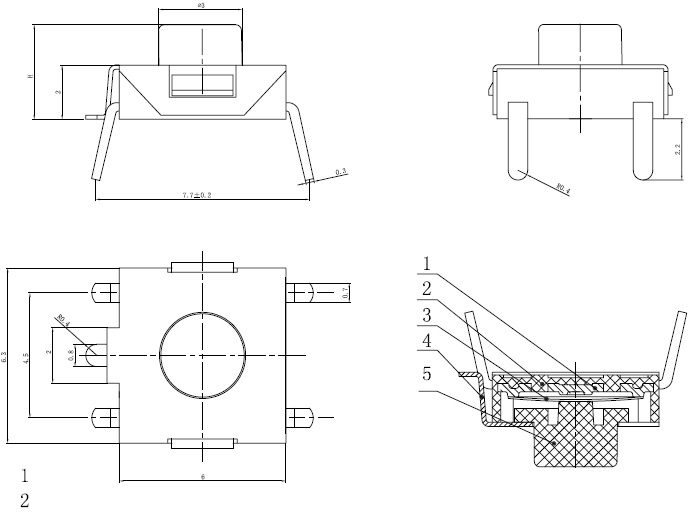

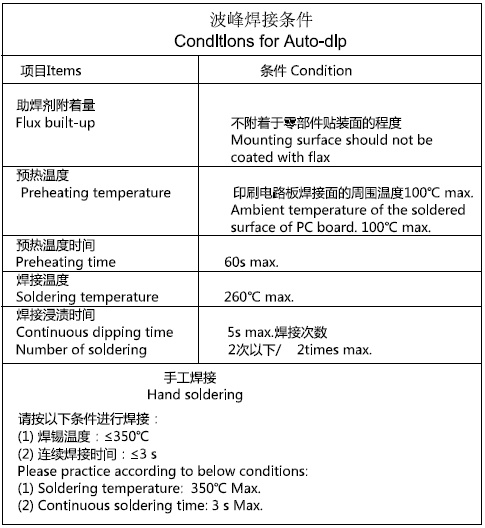

*6 DIP tact switch (TS0648) P/N:TS0648 Type:(DIP)tact switch Dimension:H=2.5/2.7/3.0/3.1/3.4/3.7/3.8/4.3/5/5.5/6/7MM Operating force:100gf/160gf/260gf life cycles:100 /200/500/1000 thousand cycles Hotline:86-13883136654 Email:susie.tsang@CN-YOTO.com Operating temperature: -20℃to+70℃ Rated current: 50mA.12VDC Insulation resistance: 100MΩmin.100VDC Dielectric strength: 250VACfor1min Contact resistance: 100mΩmax. Travel: 0.25±0.1mm DIP Switches Using Attention 1. Please consult us when considering to wash tact switches; 2. Please don’t immerse soldering flux into tact switches; 3. Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board; 4. The second welding should be done after switches return to normal temperature; 5. Please use soldering flux that is more than 0.81 proportion;
