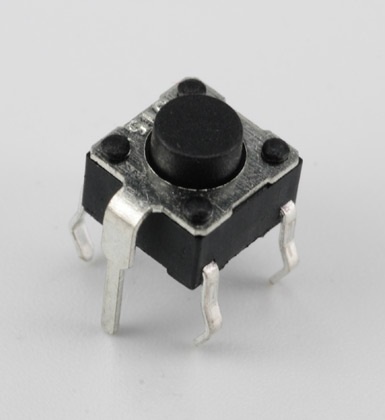

6*6shielded(TS0621)

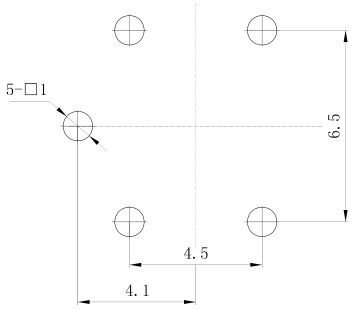

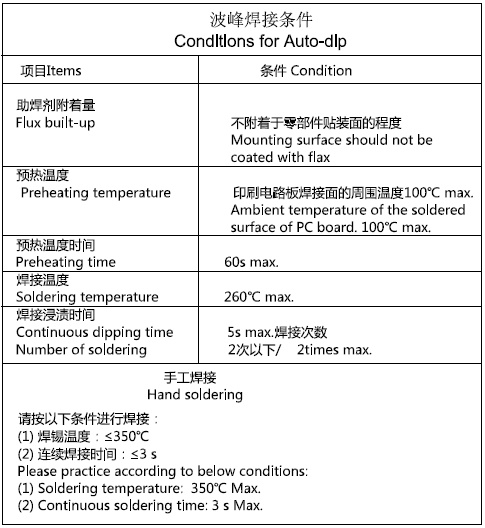

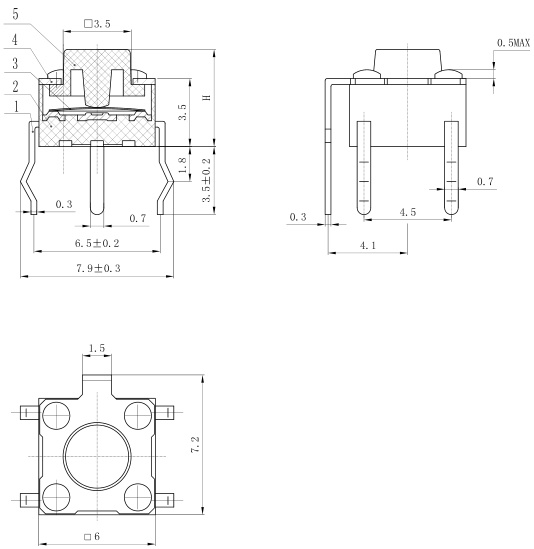

Type: DIP with ground pin tact switch Dimension: 6×6×H/H=4.3MM-21M P/N: TS0621 Operating force: 100gf/160gf/260gf Life cycles: 100 /200/500/1000 thousand cycles Hotline:86-13883136654 Email:susie.tsang@cn-yoto.com Operating temperature: -20℃to+70℃ Rated current: 50mA.12VDC Insulation resistance: 100MΩmin.100VDC Dielectric strength: 250VACfor1min Contact resistance: 100mΩmax. Travel: 0.25±0.1mm DIP Switches Using Attention 1. Please consult us when considering to wash tact switches; 2. Please don’t immerse soldering flux into tact switches; 3. Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board; 4. The second welding should be done after switches return to normal temperature;
